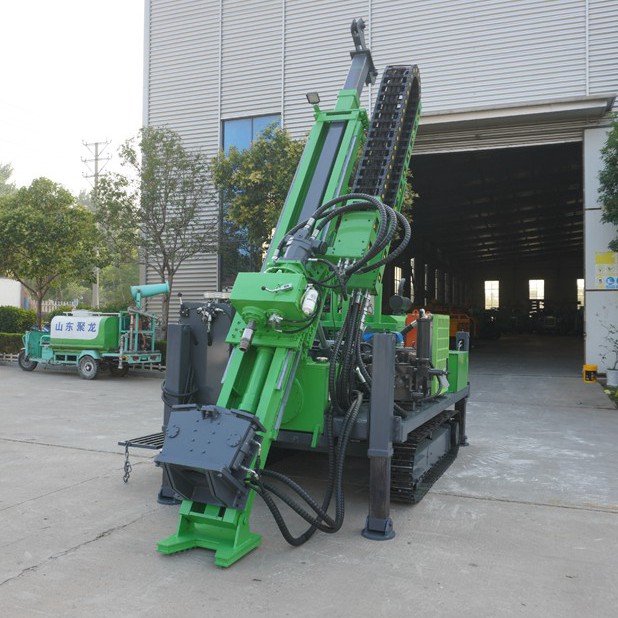

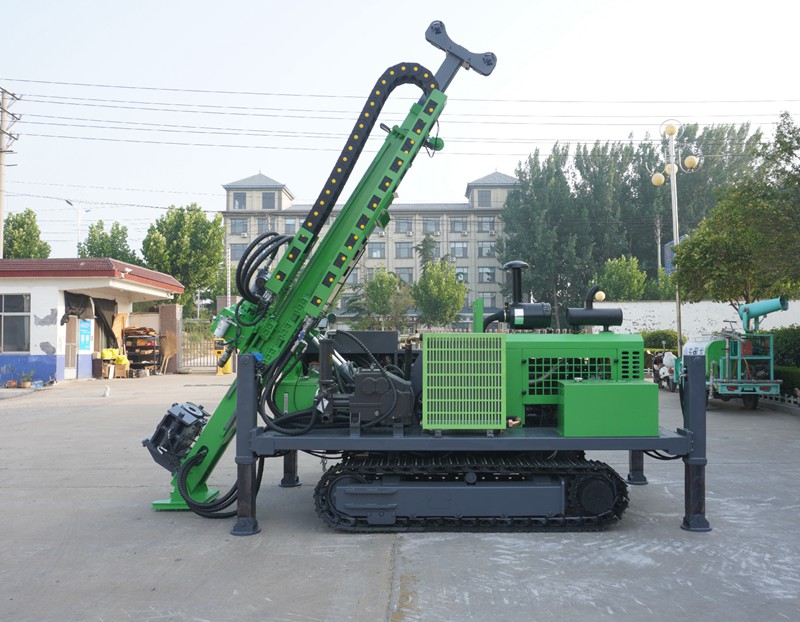

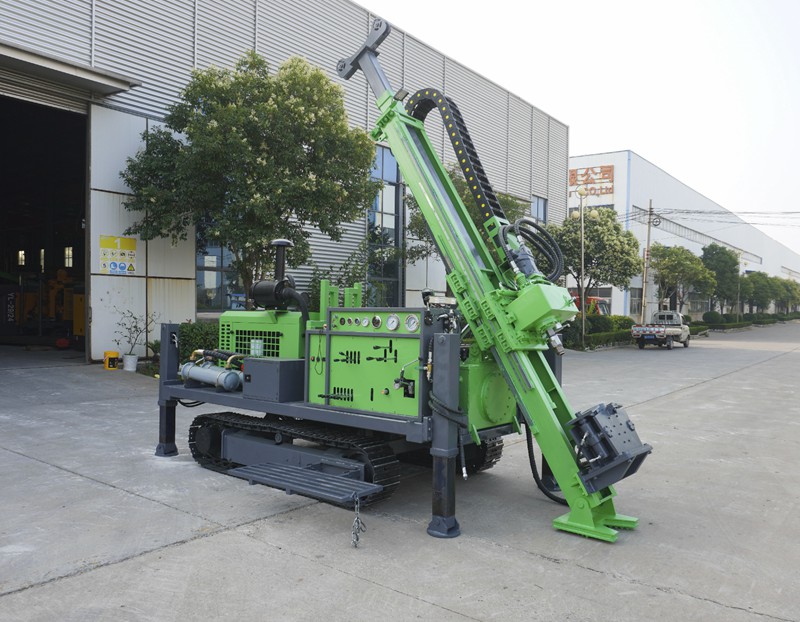

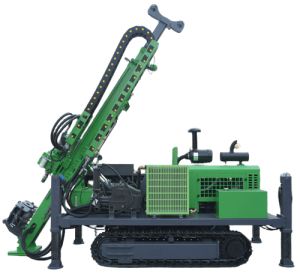

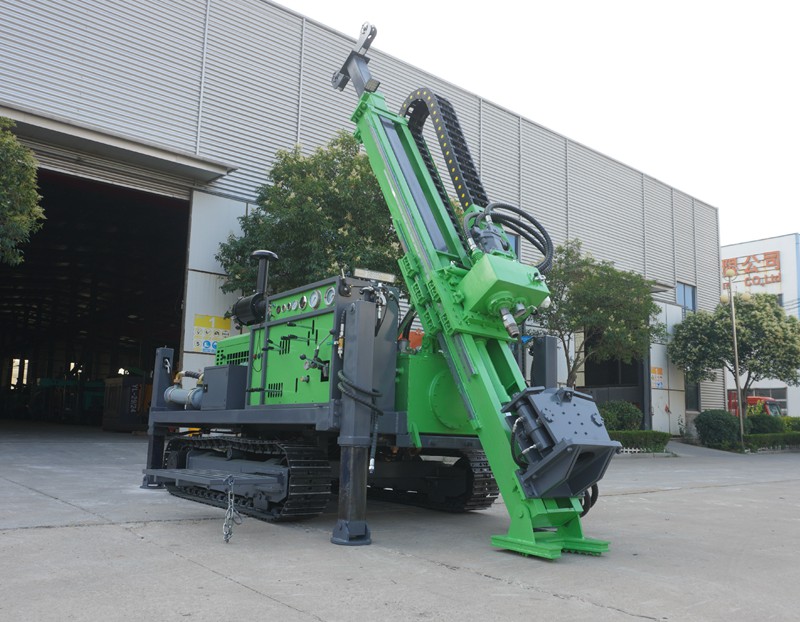

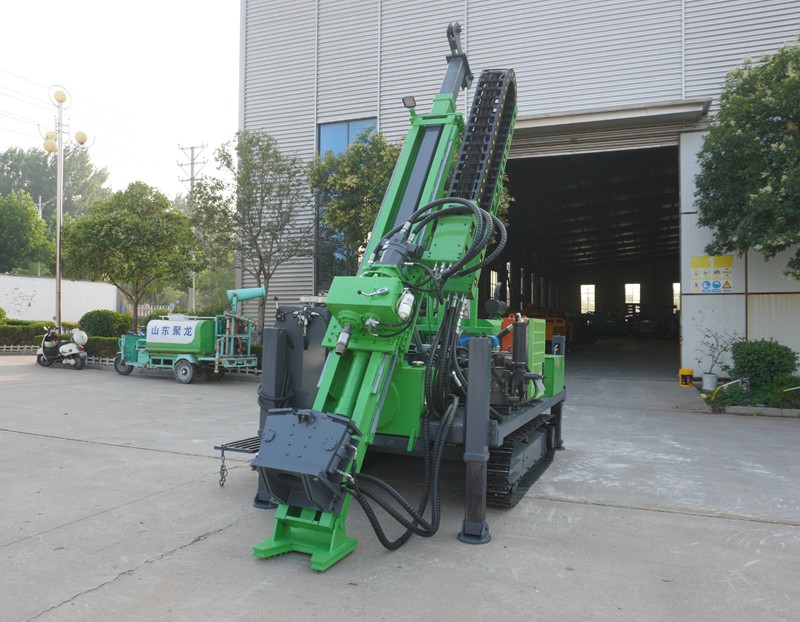

HF-600 Fully hydraulic Core Drilling Rig
⚙️ Triple-Pump Hydraulic Drive
Engineered with a high-performance axial piston pump plus a triple gear pump system for smooth, full hydraulic power delivery.
🌀 Stepless High-Torque Control
Features a mechanical two-speed stepless regulation power head, delivering a massive maximum torque of up to 1400 N.m.
🏗️ Rapid Pipe Handling
Equipped with a lateral translation mechanism on the power head, significantly streamlining the lifting and lowering of drill pipes.
⚡ Compact High-Power Motor
Utilizes a specialized swashplate axial piston motor, combining a space-saving compact design with high-intensity power output.
📐 Multi-Angle Drilling Mastery
Superior operational flexibility with a wide drilling range from 45° to 90°, adaptable to diverse and complex job sites.
HF-600 Fully hydraulic Core Drilling Rig Features
- Transportation Dimension:4500*1900*2300mm
- Drilling Depth:300-650m
- Machine weight: 4.6t
- Main features of the drilling rig: The HF series fully hydraulic core drilling rig is a new type of drilling rig developed by our company based on the advanced technologies of similar rigs both domestically and abroad. It is primarily designed for drilling in solid mineral deposits, but can also be used for engineering geology exploration, shallow oil and gas exploration, groundwater exploration, as well as for various engineering boreholes such as tunnel ventilation, drainage, and dam grouting. The drilling rig features full-hydraulic drive; its power head rotation is driven by an axial piston pump and a swashplate piston motor, with mechanical two-speed transmission and stepless speed regulation, boasting an advanced structural design. The power head employs a hydraulic cylinder-chain speed-increasing feed mechanism, ensuring smooth and reliable operation. It is equipped with a lateral shifting mechanism for the power head, and the mast can be raised and lowered hydraulically, allowing it to slide entirely for overall movement. This enables drilling within a range of 45° to 90°. The hydraulic system adopts load-sensing control, delivering high operational efficiency and substantial torque. The rig is fitted with a hydraulic wood clamp, hydraulic leveling legs, and a telescopic mast, facilitating quick positioning of the rig. It is also equipped with a wireless remote-controlled crawler track, making it suitable for a variety of terrains and enabling remote control of the rig’s movement within a safe distance, thus preventing unexpected hazards.
| Drilling rig model | HF-600 | |
| Drilling capability | By the way (m) | 650 |
| NTW (m) | 600 | |
| HTW (m) | 400 | |
| NQ (m) | \ | |
| Hydraulic system | Rated pressure / MPa | 32 + 25 |
| Cooling method | Water cooling + (Optional air cooling) | |
| Engine parameters | Model | Yuchai four-cylinder |
| Rated power Kw | 92 | |
| Rated speed rpm | 2200 | |
| Power head parameters | Maximum torque N.m | 1400 |
| Maximum speed rpm | 1400 | |
| Give the itinerary m | 1.8 | |
| Through-hole diameter mm | 95 | |
| Lift force kN | 240 | |
| Thrust kN | 120 | |
| Wireline Core Retrieval Winch Parameters | Weight of rope m | 800 |
| Lift force kN | 15 | |
| Increase speed m/min | 110 | |
| Steel wire rope diameter mm | 5 | |
| Mast parameters | Overall height/m | 6.1 |
| Drilling angle ° | 45-90 | |
| Slip travel mm | 800 | |
| Gripper parameters | BQ/NQ/HQ/PQ (optional horse clamp) | |
| Track parameters | Climbing angle ° | 25 |
| Driving speed km/h | 2-3 | |
| Shipping dimensions | Length × Width × Height mm | 4500*1900*2650 |
| Overall machine weight (t) | 4.5 | |
