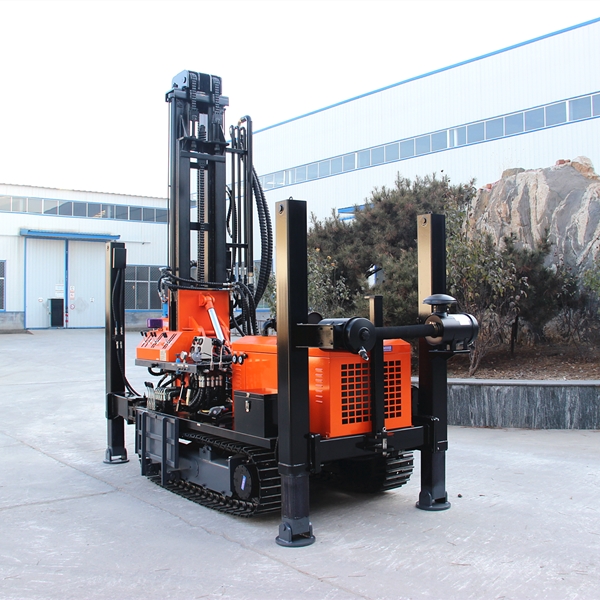

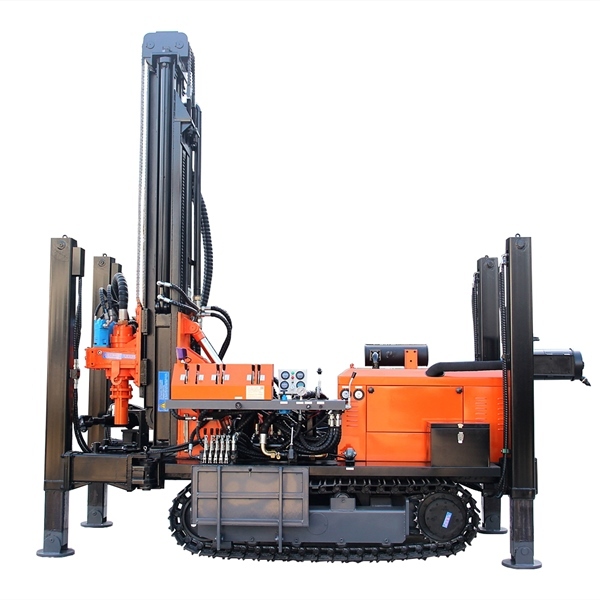

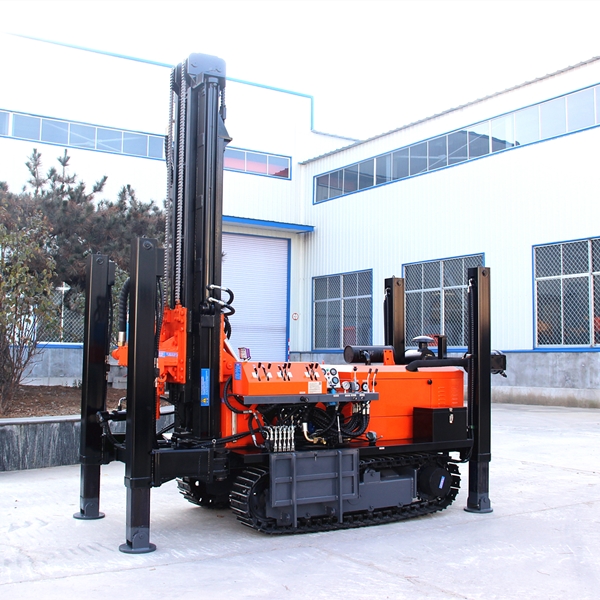

HF180 Water Well Drilling Rig
Home / Dring Rig / HF180 Water Well Drilling Rig
HF180 Water Well Drilling Rig | Core Advantages
⚡ High-Torque Power System
Experience industry-leading power with a world-renowned engine built for fuel efficiency and extreme reliability.
🚜 Heavy-Duty Crawler Chassis
Featuring a classic, durable design with wide chain plates for superior load-bearing and minimal ground damage.
💧 Precision Hydraulic Core
Advanced parallel gearbox design with independent oil pumps for optimized power distribution and low-cost maintenance.
🌀 Dual-Motor Power Head
Twin-motor configuration delivers massive torque and enhanced durability, significantly reducing long-term service costs.
⚙️ Reinforced Traveling Gear
Equipped with premium traveling motors and reducers, engineered for a longer service life and smooth site navigation.
HF180 Water Well Drilling Rig Features
- Engine: well-known brand Guangxi Yuchai turbocharged engine;
- Traveling device: equipped with new traveling motor and reducer, with long service life;
- Hydraulic oil pump: imported from the United States, parallel gearbox design, independent oil pump, providing sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
- Power head device: the box is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs;
- Drilling rig chassis; professional excavator chassis, classic and durable, load-bearing, wide chain plate width,Less damage to hard pavement;
- Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and large in lifting tonnage of the drilling rig; The boom configured with the rig body is provided with a limit device to protect the safety of the oil cylinder and ensure work safety;
- Each hydraulic oil pipe is covered with a thick protective sleeve, so that the oil pipe has a longer service life;
- Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump.
| HF180 steel crawler water well drilling rig | |||
| The weight（T） | 5.2 | Drill pipe diameter（mm） | Φ76 Φ89 |
| The hole diameter（mm） | 140-254 | Drill pipe length（m） | 1.5m 2.0m 3.0m |
| Drilling depth（m） | 180 | Rig lifting force（T） | 12 |
| One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 20 |
| Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Width of loading（m） | 2.4 |
| Equipped capacitor（kw） | 60 | Hoisting force of winch（T） | —- |
| Using air pressure（MPA） | 1.7-2.5 | Swing torque（N.m） | 3200-4600 |
| Air consumption（m³/min） | 17-31 | Dimension（mm） | 4000×1630×2250 |
| Swing speed（rpm） | 45-70 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.4 |
| The engine brand | Yuchai engine | ||
