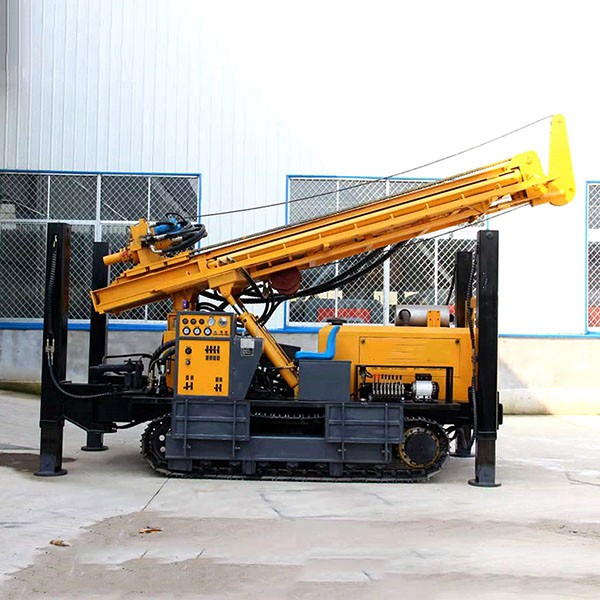

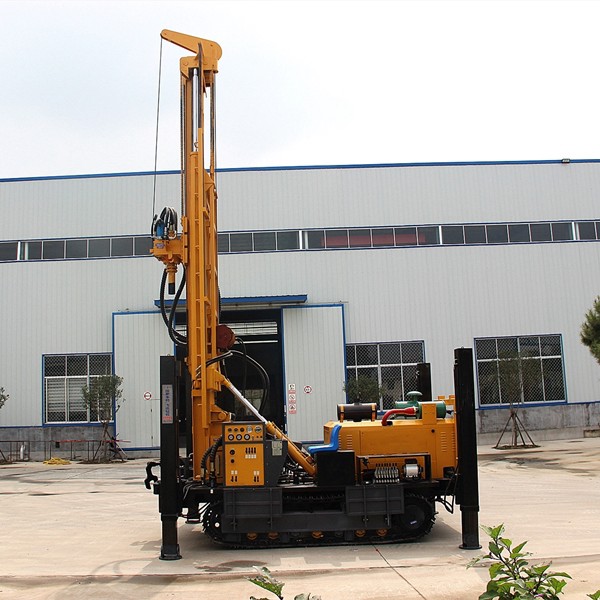

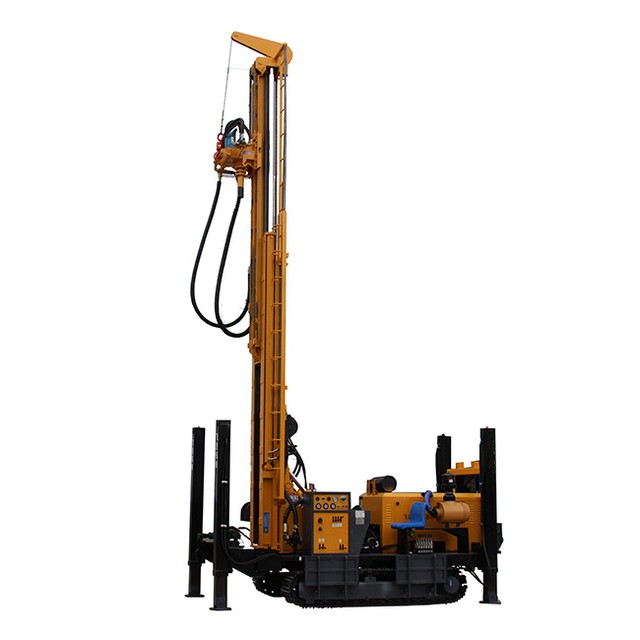

HF500 Water Well Drilling Rig
Home / Dring Rig / HF500 Water Well Drilling Rig
HF500 Water Well Drilling Rig | Core Advantages
🚀 World-Class Propulsion
Equipped with Yuchai or American Cummins turbocharged engines, delivering elite-level power and fuel efficiency.
⚙️ Integrated High-Torque Drive
Featuring Italian-imported hydraulic pumps and an integrally formed dual-motor power head for massive torque and lower maintenance.
🏗️ Heavy-Duty Safety Boom
Advanced composite boom with double-cylinder lifting force and built-in limit devices to ensure maximum tonnage and operational safety.
🛡️ Professional Terrain Chassis
Specialized drilling chassis with widened track plates for superior load-bearing and minimal impact on hard road surfaces.
❄️ Independent Dual Cooling
Advanced hydraulic oil and traditional air-cooling systems, paired with armored oil pipes, significantly extending the machine’s service life.
HF500 Water Well Drilling Rig Features
- Engine: Well-known brand Guangxi Yuchai turbocharged engine or American Cummins brand turbocharged engine
- Traveling device: equipped with new traveling motor and reducer, with long service life;
- Hydraulic oil pump: imported from Italy, parallel gearbox design, oil pump separation, provide
- Sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
- Power head device; the box body is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs;
- Drilling rig chassis; (professional drilling rig chassis), classic and durable, load-bearing, wide chain plate width, less damage to hard roads;
- Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and large in lifting tonnage of the rig; the boom configured on the rig body is equipped with a limit device to protect the safety of the oil cylinder. ensure work safety;
- Each hydraulic oil pipe is covered with a thick protective sleeve, which makes the oil pipe have a longer service life;
- The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
- Dual system: 1. Air power system with air compressor 2. Mud pump system with mud pump
| HF 500 crawler water well drilling rig | |||
| The weight（T） | 9.5 | Drill pipe diameter（mm） | Φ102 Φ108 Φ114 |
| The hole diameter（mm） | 140-350 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth（m） | 500 | Rig lifting force（T） | 26 |
| One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 20 |
| Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Width of loading（m） | 2.85 |
| Equipped capacitor（kw） | 118 | Hoisting force of winch（T） | 2 |
| Using air pressure（MPA） | 1.7-3.5 | Swing torque（N.m） | 7500-10000 |
| Air consumption（m³/min） | 17-42 | Dimension（mm） | 6150×2200×2600 |
| Swing speed（rpm） | 45-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.6 |
| The engine brand | Yuchai engine | ||
