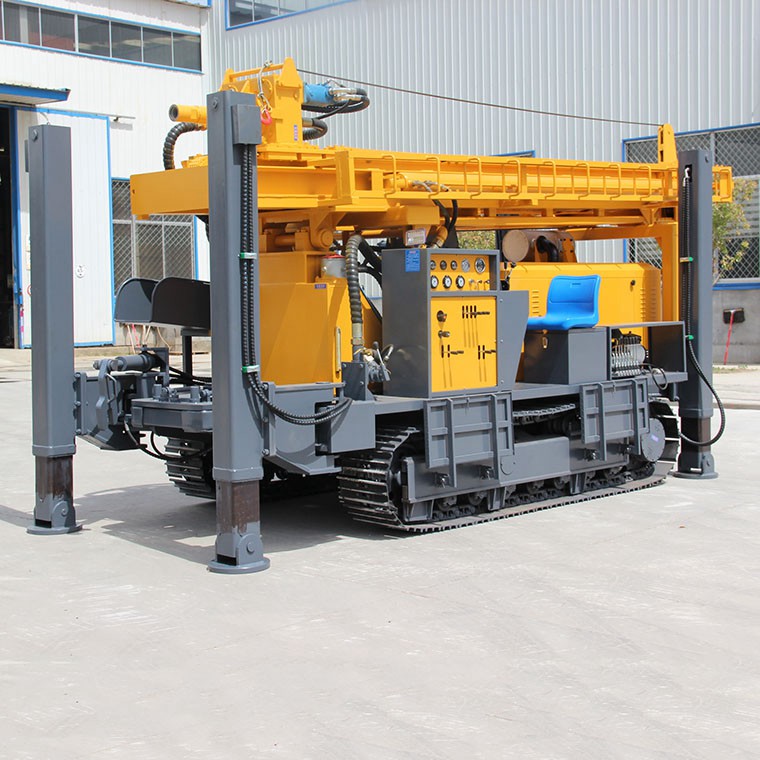

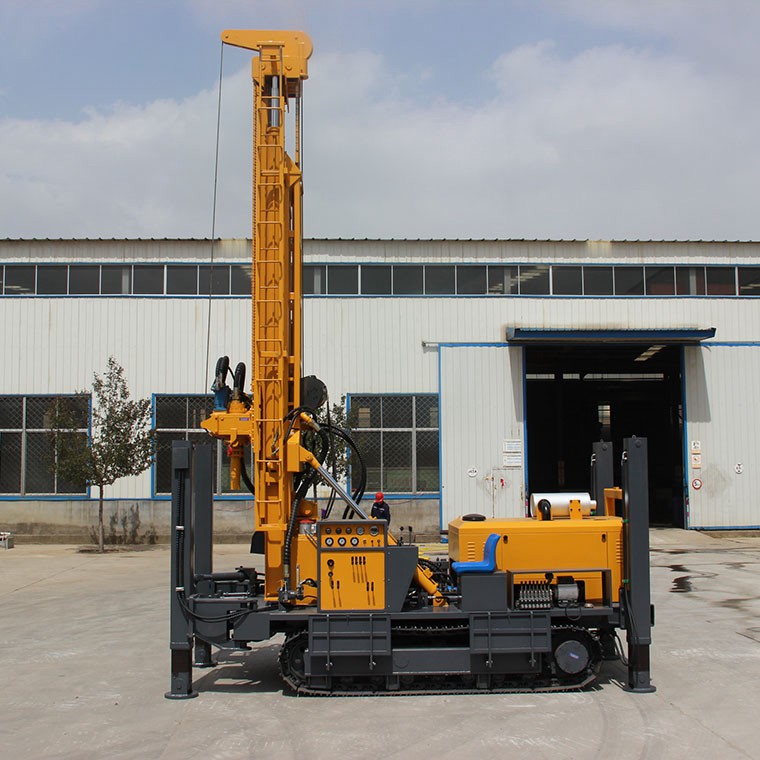

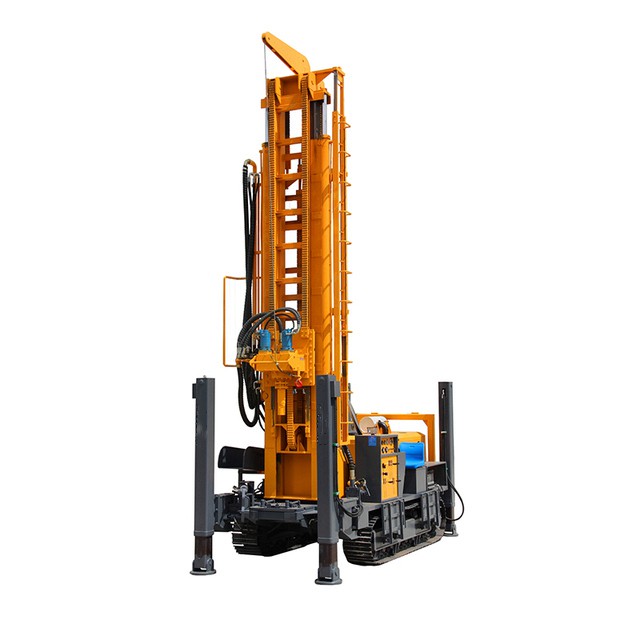

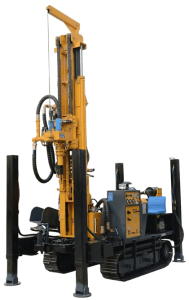

HF600 Water Well Drilling Rig
Home / Dring Rig / HF600 Water Well Drilling Rig
HF600 Water Well Drilling Rig | Core Advantages
⚡ Elite Power System
Powered by a 113kW Cummins engine and triple Italian-imported hydraulic pumps for unmatched drilling efficiency and longevity.
🌀 Versatile Top-Drive Head
Features a large-diameter main shaft designed to excel in mud, air, and foam drilling across diverse geological formations.
🛠️ Dual-System Versatility
Equipped with a flexible, high-efficiency power system supporting both air compressor (pneumatic) and mud pump operations.
🛡️ Superior Terrain Maneuverability
Optimized layout with all-ground chassis and exceptional off-road performance, ideal for deep-well resource and coal-bed gas exploration.
❄️ Intelligent Dual-Cooling System
Advanced independent hydraulic oil temperature cooling combined with traditional air cooling to ensure engine durability in extreme conditions.
HF600 Water Well Drilling Rig Features
- HF600 series water well drilling rig adopts full hydraulic control, the top drive drives the drilling tool to rotate, and the drilling efficiency is high.
- Using Cummins 113kw generator, strong power and long service life. Oil pump imported from Italy, 3 oil pumps
- The overall layout is reasonable, and the traction or all-ground chassis is used for transportation, with good maneuverability.
- It is very flexible on difficult roads, and can be widely used in hydrological well resource exploration, coalbed methane, shallow shale gas, geothermal and other fields, and can also be used in coal mine gas mining and salvage work.
- The main shaft of the top-mounted drive head has a large diameter, which is suitable for various construction operations such as mud drilling, air drilling, and air foam drilling, and meets the drilling needs of different formations.
- The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
- Dual system: 1. Air power system with air compressor 2. Mud pump system with mud pump.
| HF600 crawler water well drilling rig | |||
| The weight（T） | 11.5 | Drill pipe diameter（mm） | Φ102 Φ108 Φ114 |
| The hole diameter（mm） | 140-350 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth（m） | 600 | Rig lifting force（T） | 28 |
| One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 20 |
| Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Width of loading（m） | 2.85 |
| Equipped capacitor（kw） | 113 | Hoisting force of winch（T） | 2 |
| Using air pressure（MPA） | 1.7-3.5 | Swing torque（N.m） | 8500-11000 |
| Air consumption（m³/min） | 17-42 | Dimension（mm） | 6300×2200×2650 |
| Swing speed（rpm） | 45-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.7 |
| The engine brand | Cummins engine | ||
