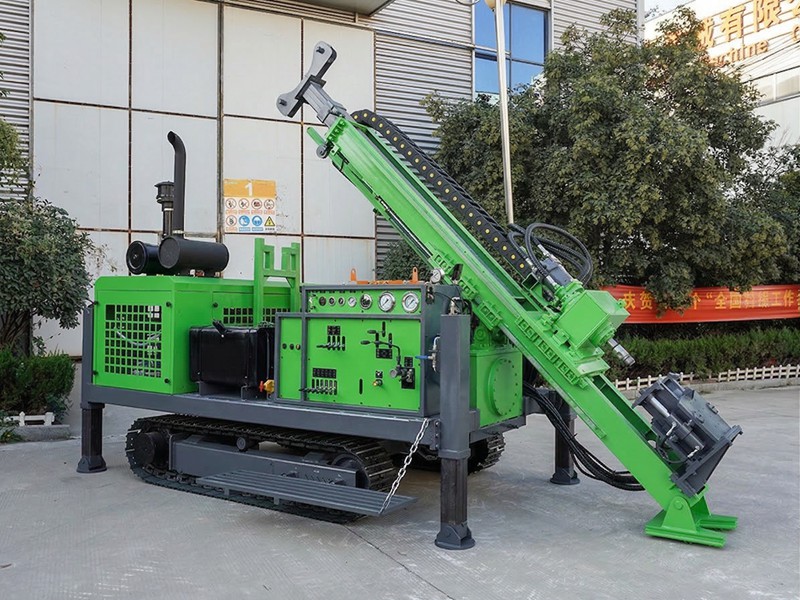

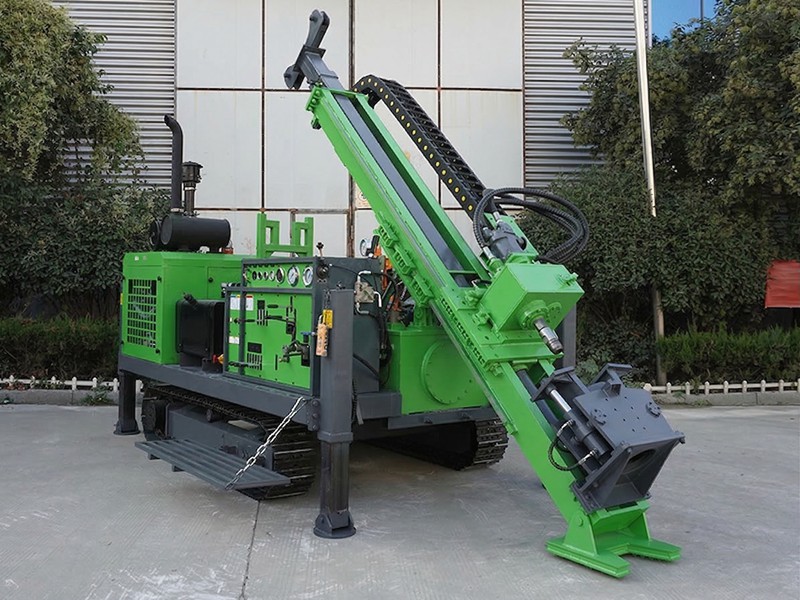

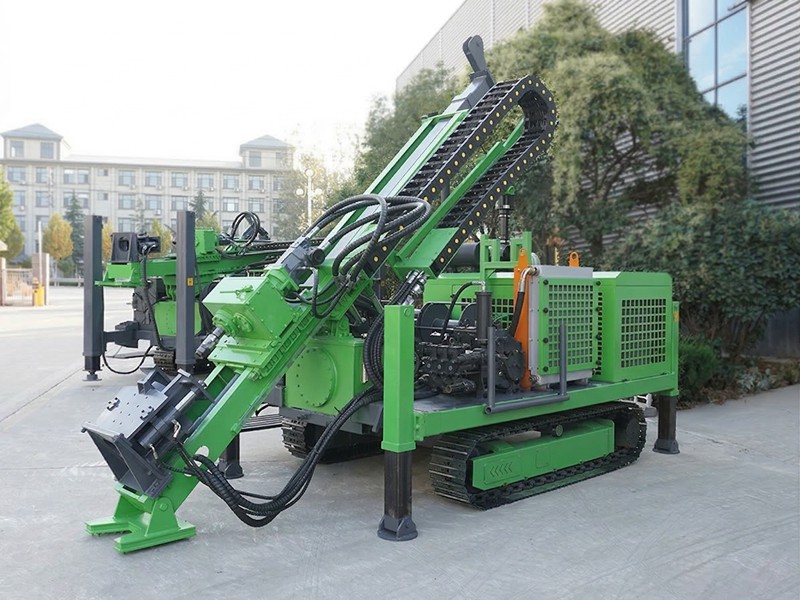

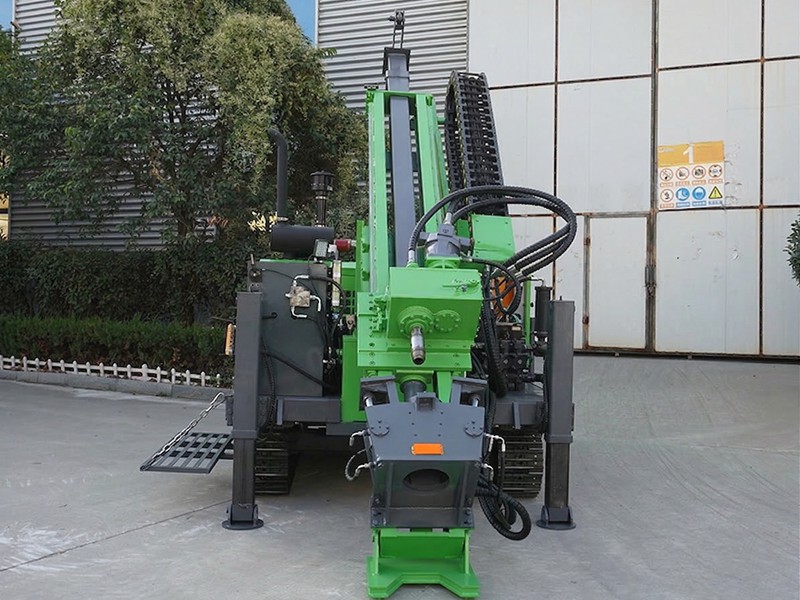

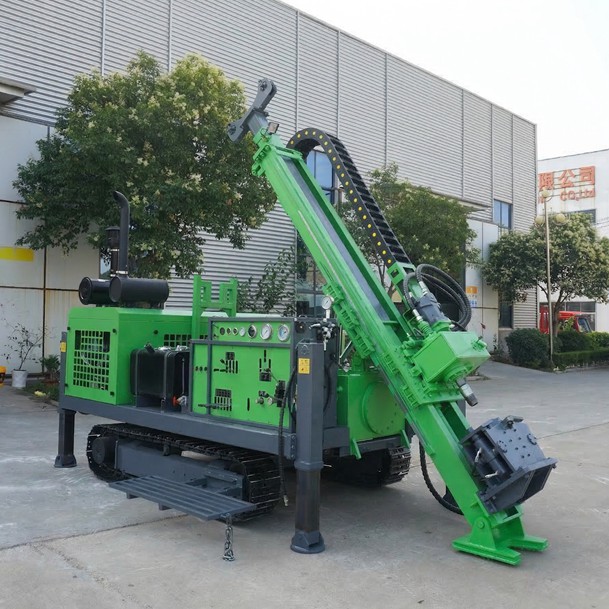

HF-800 Full Hydraulic Core Drilling Rig
⚙️ Full Hydraulic Drive System
Powered by a precision axial piston pump and swashplate motor for smooth, high-intensity energy transmission.
🌀 High-Torque Stepless Control
Mechanical two-speed operation with stepless adjustment, delivering a massive maximum torque of up to 1800 N.m.
🏗️ Lateral Translation Mechanism
Equipped with a power head sliding design, significantly simplifying the lifting and lowering of drill pipes.
📐 Flexible Mast Positioning
Hydraulic cylinder-driven mast with 45° to 90° drilling range, enabling versatile operations in complex environments.
HF-800 Full Hydraulic Core Drilling Rig Features
- Transportation Dimension: 5600*1900*2650mm
- Drilling Depth: 600-1200m
- Machine weight: 7.5t
- Main features of the drilling rig:
The HF series fully hydraulic core drilling rig is a new type of drilling rig developed by our company based on the advanced technologies of similar rigs both domestically and abroad. It is primarily designed for drilling in solid ore deposits, but can also be used for engineering geology exploration, shallow-depth oil and gas exploration, groundwater exploration, as well as for various engineering applications such as tunnel ventilation, drainage, and dam grouting. The drilling rig features full-hydraulic drive; its power head rotation is driven by an axial piston pump and a swashplate piston motor, with mechanical two-speed transmission and stepless speed regulation, boasting an advanced structural design. The power head employs a hydraulic cylinder-chain gear reduction mechanism for feed advancement, ensuring smooth and reliable operation. It is equipped with a lateral shifting mechanism for the power head, and the mast can be raised and lowered hydraulically, allowing it to slide entirely for overall movement. This enables drilling within a range of 45° to 90°. The hydraulic system adopts load-sensing control, delivering high efficiency and substantial torque. The rig is fitted with a hydraulic chuck for holding wooden logs, hydraulically adjustable leveling legs, and a telescopic mast, facilitating rapid positioning of the rig. It is also equipped with a wireless remote-controlled crawler track, making it suitable for a wide variety of terrains. Within a safe operating distance, the crawler track can be remotely controlled, effectively preventing sudden hazards.
| Drilling rig model | HF-800 | |
| Drilling capability | By the way (m) | 1000 |
| NTW (m) | 800 | |
| HTW (m) | 600 | |
| NQ (m) | / | |
| Hydraulic system | Rated pressure MPa | Main pump: 95 ml/r, 32 MPa; Auxiliary pump: 80 ml/r, 25 MPa |
| Cooling method | Water cooling + air cooling | |
| Engine parameters | Model | Yuchai Shares Six-Cylinder |
| Rated power Kw | 92 | |
| Rated speed rpm | 2200 | |
| Power head parameters | Maximum torque N.m | 1800 |
| Maximum speed rpm | 1400 | |
| Give the itinerary m | 1.8 | |
| Lift force kN | 300 | |
| Thrust kN | 150 | |
| Wireline Core Retrieval Winch Parameters | Weight of rope m | 800 |
| Lift force kN | 20 | |
| Increase speed m/min | 110 | |
| Steel wire rope diameter mm | 6 | |
| Mast parameters | Overall height /m | 6.5 |
| Drilling angle ° | 45-90 | |
| Slip travel mm | 1200 | |
| Gripper parameters | Through-hole diameter: 130 | |
| Track parameters | Maximum climbing angle ° | 25 |
| Driving speed km/h | 2-3 | |
| Shipping dimensions | Length x Width x Height mm | 4400 x 2200 x 2800 |
| Overall machine weight (t) | 6.5 | |
