High Lift Scissor Tables

Home / Lift tables / High Lift Scissor Tables

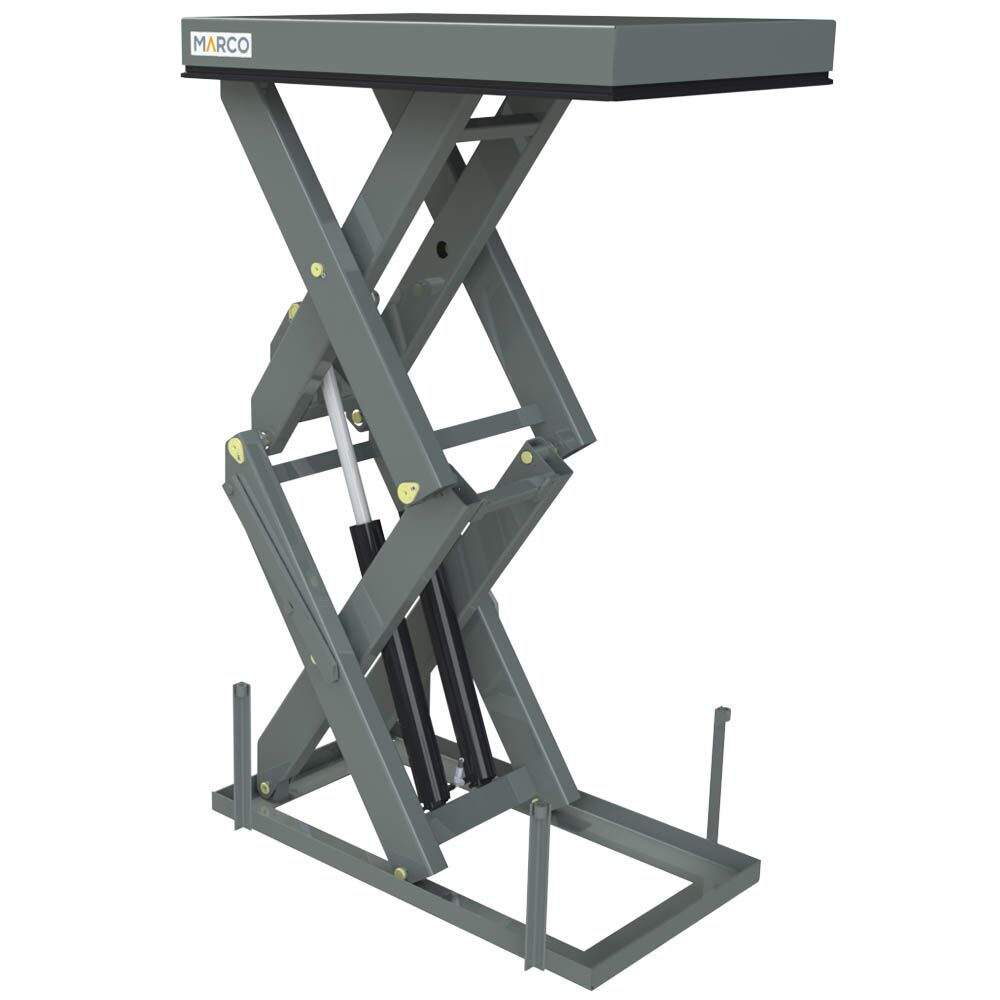

High Lift Scissor Tables

Our high lift scissor tables have multiple vertically mounted scissors that provide a higher lift than single scissor tables can achieve. They are used as:

Work platforms
Goods lifts
Elevators
Lifts for disabled people
Pallet stackers

Our high lift scissor tables are the rational and economical solution to replace conventional elevators.

Capacity	Lift stroke	Closed height	Width	Length	Model	ITEM NO.	ITEM REF.
400	800	200	600	800	M0 004080-D1/2H	1137818	860660
500	3200	400	1000	2250	M2 005320-D22H	1137795	860102
500	1800	350	1000	1350	M2 005180-D12H	1137796	860105
1000	1800	350	1000	1350	M2 010180-D22H	1137797	860110
1000	2000	350	1000	1500	M2 010200-D2/2H	1137799	860114
1000	2500	350	1000	1800	M2 010250-D22H	1137800	860115
1000	3200	500	1000	2250	M3 010320-D22H	1137801	860118
1000	3300	530	1200	1650	M2 010330-D23H	1137816	860180
1500	1800	400	1000	1350	M2 015180-D2/2H	1137798	860111
2000	5000	950	2000	3000	M4,5 020500-D23H	1137814	860145
2000	3800	800	1800	2250	M3 020380-D2/3HB	1137805	860124
2000	4300	650	1200	3000	M3 020430-D2/2H	1137806	860125
2000	3200	530	1000	2250	M3 020320-D22H	1137804	860123
2000	2000	500	1000	1500	M3 020200-D2/2H	1137802	860120
2000	3800	800	1200	2250	M3 020380-D23H	1137817	860190
2500	3200	530	1200	2500	M3,5 025320-D2/2H	1137807	860126
3000	3000	700	1300	2500	M4 030300-D22H	1137808	860130
4000	3000	700	1500	2500	M4 040300-D22H	1137809	860140
4000	3000	700	1500	2500	M5-040500-D2/3H	1137810	860141
4000	3000	700	1500	2500	M5-050400-D2/2H	1137811	860142
8000	5000	1100	2500	4000	M6-080500-D2/2H	1137812	860143
